Available Pixel Pitch: 1.56 | 1.86 | 2.5

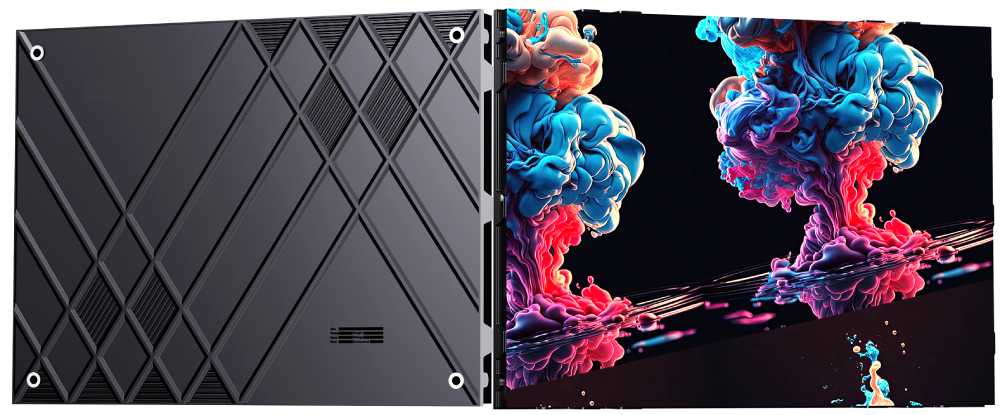

Aura SMD screen offers sharp, high-resolution visuals. Designed for fixed indoor installations, its delicate pixels require low-contact environments, making it ideal for controlled spaces like lobbies or showrooms. With a 640×480 cabinet, precision die-cast aluminum frame, seamless module alignment, and efficient heat dissipation, it ensures stable and vibrant performance over time.

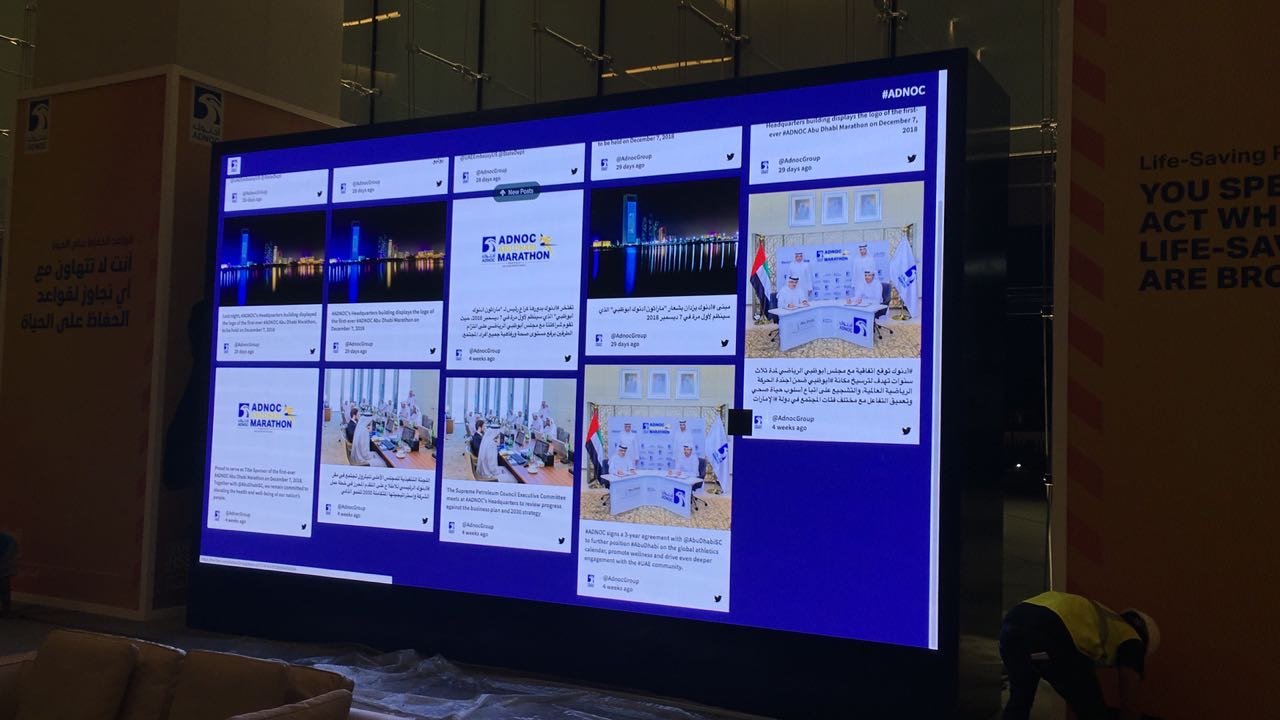

Our expert team installed Aura high-resolution LED screen in Saudi Arabia, enhancing branding and creating a stunning first impression.

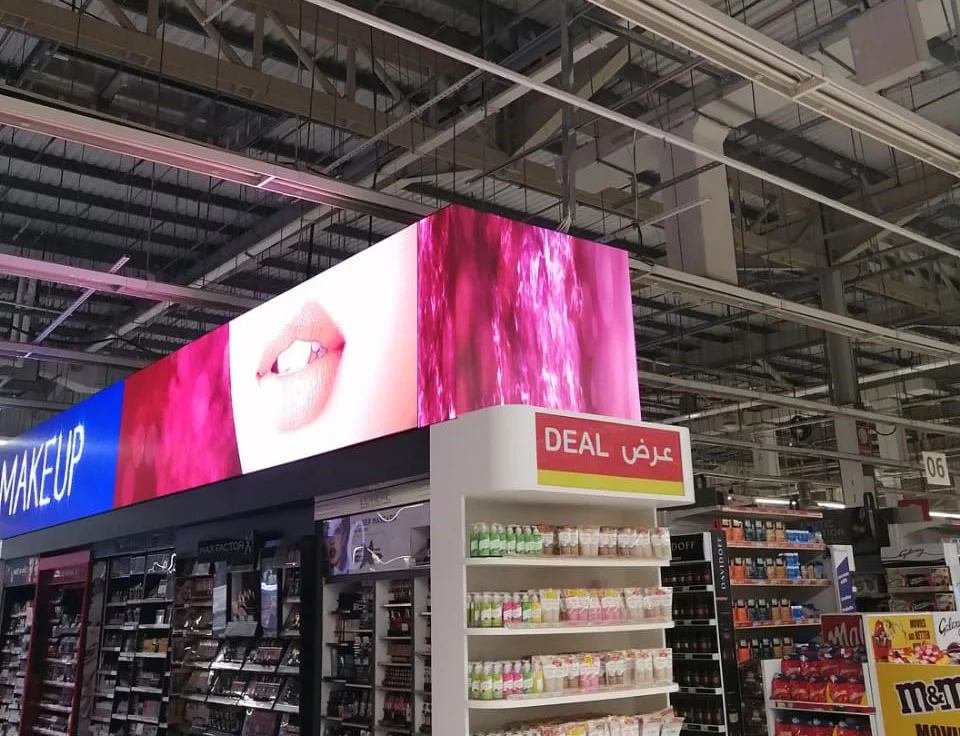

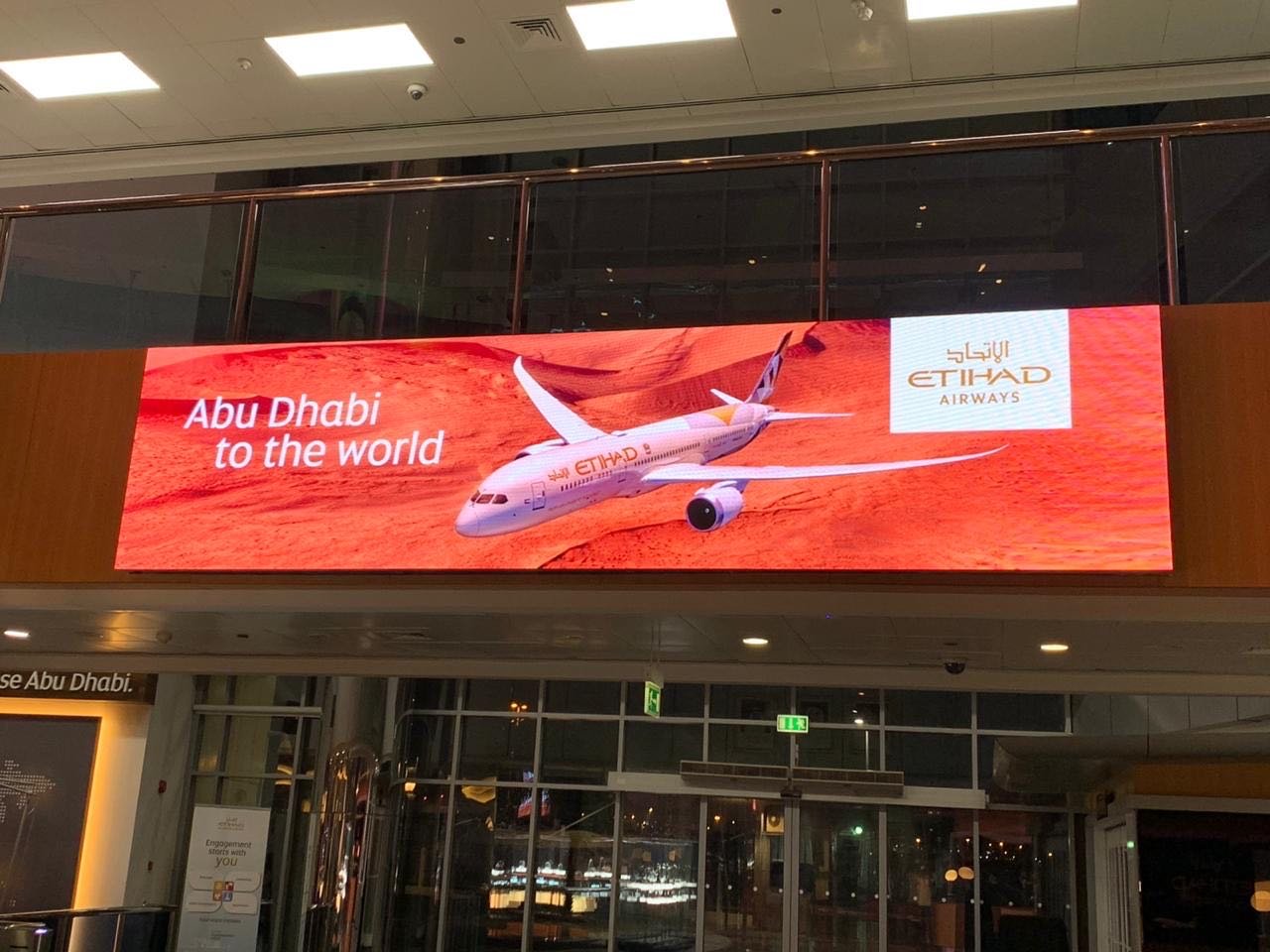

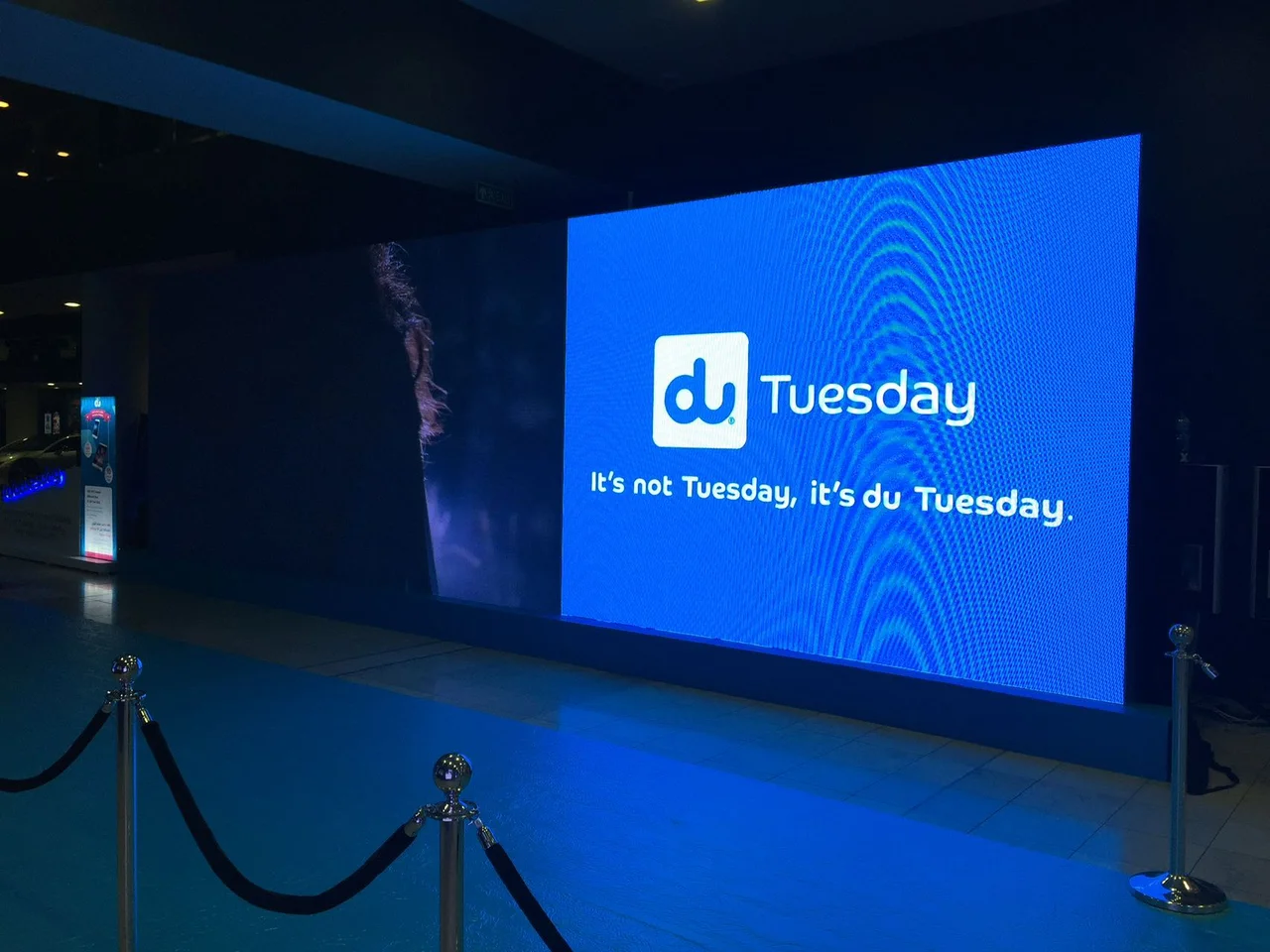

Aura screens are ideal for controlled environments that are not too busy, as their delicate pixels can be damaged by frequent contact. They are best used in retail stores, showrooms, reception areas, control rooms, and corporate spaces where they can deliver bright, clear, and vibrant visuals while remaining safely protected indoors.
Aura display LED screens act as high-performance video walls that display images and videos with exceptional clarity. With high greyscale and accurate color reproduction, visuals remain crisp and smooth. Their high contrast ratio delivers vivid images with deep blacks and vibrant colors, creating rich, immersive content that keeps audiences engaged.
Check the key features for Alta LED screens
Crisp images and smooth video playback with accurate colors.
Clear and consistent visuals from almost any position in the room.
Easy to install, maintain, and integrate into indoor environments like retail stores, offices, and showrooms.
Download the preferred specifications for the product.
| Specification |
AURA V1.86
|
AURA V2.5
|
|---|---|---|
| Pixel Pitch | 1.86mm | 2.5mm |
| LED Type | SMD1515 | SMD2121 |
| Module Resolution | 172×86=14792 Pixels | 128X64=8192 Pixels |
| Pixel Density | 288906 dot/㎡ | 160000 dot/㎡ |
| Module Size | W320mmxH160mm | W320mmxH160mm |
| Cabinet Size | 640mmx480mmx60mm（With Back Cover | 640mmx480mmx60mm（With Back Cover |
| Cabinet Weight | 7.8 kg | 7.8 kg |
| Maintenance | Full front maintenance | Full front maintenance |
| Ingress Protection | IP30 | IP30 |
| Planeness | ≤0.5mm | ≤0.5mm |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum |
| Brightness Calibration | Support | Support |
| Brightness | 500 cd/㎡ | 600 cd/㎡ |
| Color Temperature | 2000K～9300K Adjustable | 2000K～9300K Adjustable |
| Beam Angle | 160°/140° | 140°/140° |
| Brightness & Color Uniformity | ≥98% | ≥98% |
| Contrast Ratio | 5000:1 | 5000:1 |
| Input Power Max | 387 W/㎡ | 488 W/㎡ |
| Input Power Typical | 129 W/㎡ | 146 W/㎡ |
| Power Supply Input Voltage | AC200-240V，Frequency 47-63(Hz) | AC200-240V，Frequency 47-63(Hz) |
| Frame Changing Frequency | 60Hz | 60Hz |
| Refresh Rate | 3840Hz | 3840Hz |
| Processing Depth | 12~14Bit | 12~14Bit |
| Video Support | 2K、4K | 2K、4K |
| Life Span | 100000hrs | 100000hrs |
| Operating Humidity | -20℃~45℃ / 10%~60%RH (No Condensation) | -20℃~45℃ / 10%~60%RH (No Condensation) |
| Storage Humidity | -20℃~50℃ / 10%~65%RH (No Condensation) | -20℃~50℃ / 10%~65%RH (No Condensation) |
| Certification | CE/CB/ROHS/EAC/CCC/BS476-7 | CE/CB/ROHS/EAC/CCC/BS476-7 |
| Pixels Per Panel | - | - |
| Cabinet Resolution | - | - |
| Viewing Angle | - | - |
| AC Input Voltage | - | - |
| Storage Temperature | - | - |
| Operating Temperature | - | - |
| IP Rating | - | - |
| Lifetime Typical Value | - | - |
| Installation Type | - | - |
